Core Components

Once we have the locations registered and annotated with the correct annotations we can start deploying the control plane components across the whole ecosystem.

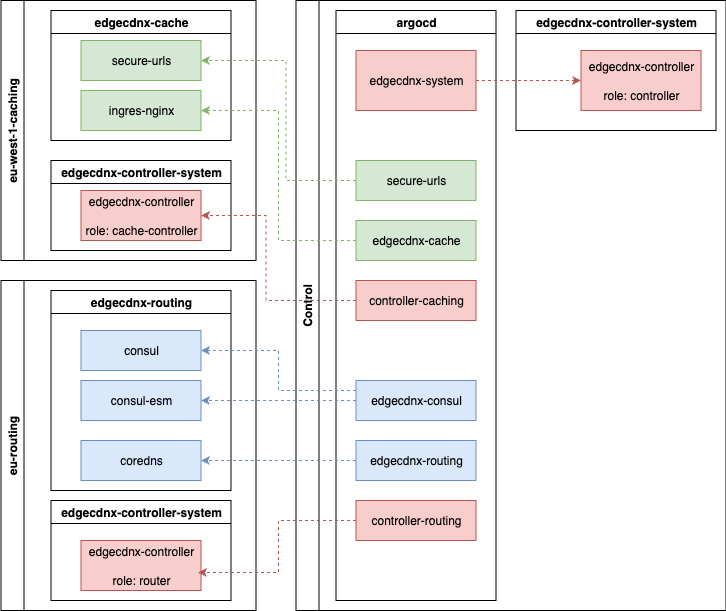

The image below represents the core components deployed. All these components are deployed with ArgoCD using Cluster Generators.

Control Plane

EdgeCDN-X-Controller - Control

The control plane runs the edgecdnx-controller, which is responsible for orchestrating the configured resources. Further, the control plane must have cert-manager installed for SSL Certificate issuance.

Routing

CoreDNS

Routing nodes serve CoreDNS with our custom implementation which can listen to CRD changes. CoreDNS will automatically update it's database watching the kubernetes API, so there's no need to reload on reconfiguration.

Consul

To enable healthchecks towards the caching locations Consul with Consul ESM is used. Consul is only used to register the endpoints and Consul ESM.

EdgeCDN-X-Controller - Routing

Routing clusters also run the edgecdnx-controller, but in routing role. This controller is responsible for registering the services to Consul for healthchecks.

Caching

Ingress Nginx

Caching locations run ingress-nginx controller with custom configuration and annotations to enable caching on local storages. It is ideally deployed as a Daemonset with HostNetworking enabled to reduce the networking overhead as much as possible. The nodes are ideally available without a LoadBalancer in front of it as individual Nodes. If such setup is not possible a LoadBalancer can be placed in front of it.

Secure URLs

The secure URLs component is responsible for exposing private data via the CDN by signing the URLs. It also can be used for streaming HLS or MPEG Content and the stream can be secured with a session cookie.

EdgeCDN-X-Controller - Caching

The edgeCDN-X Controller on these clusters are running in caching role. The controller is responsible for generating ingress, service and s3 gateway components based on the Service configuration.
